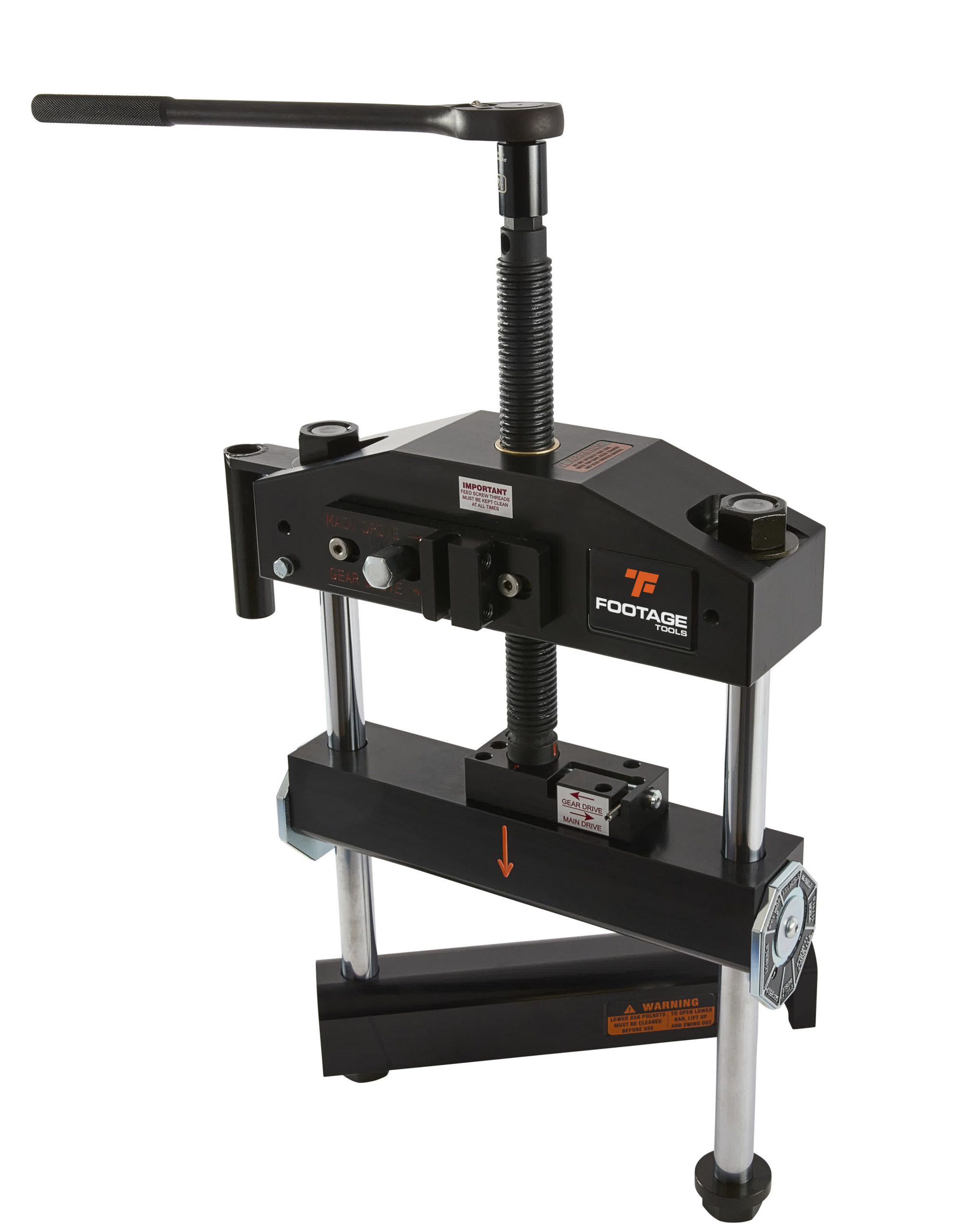

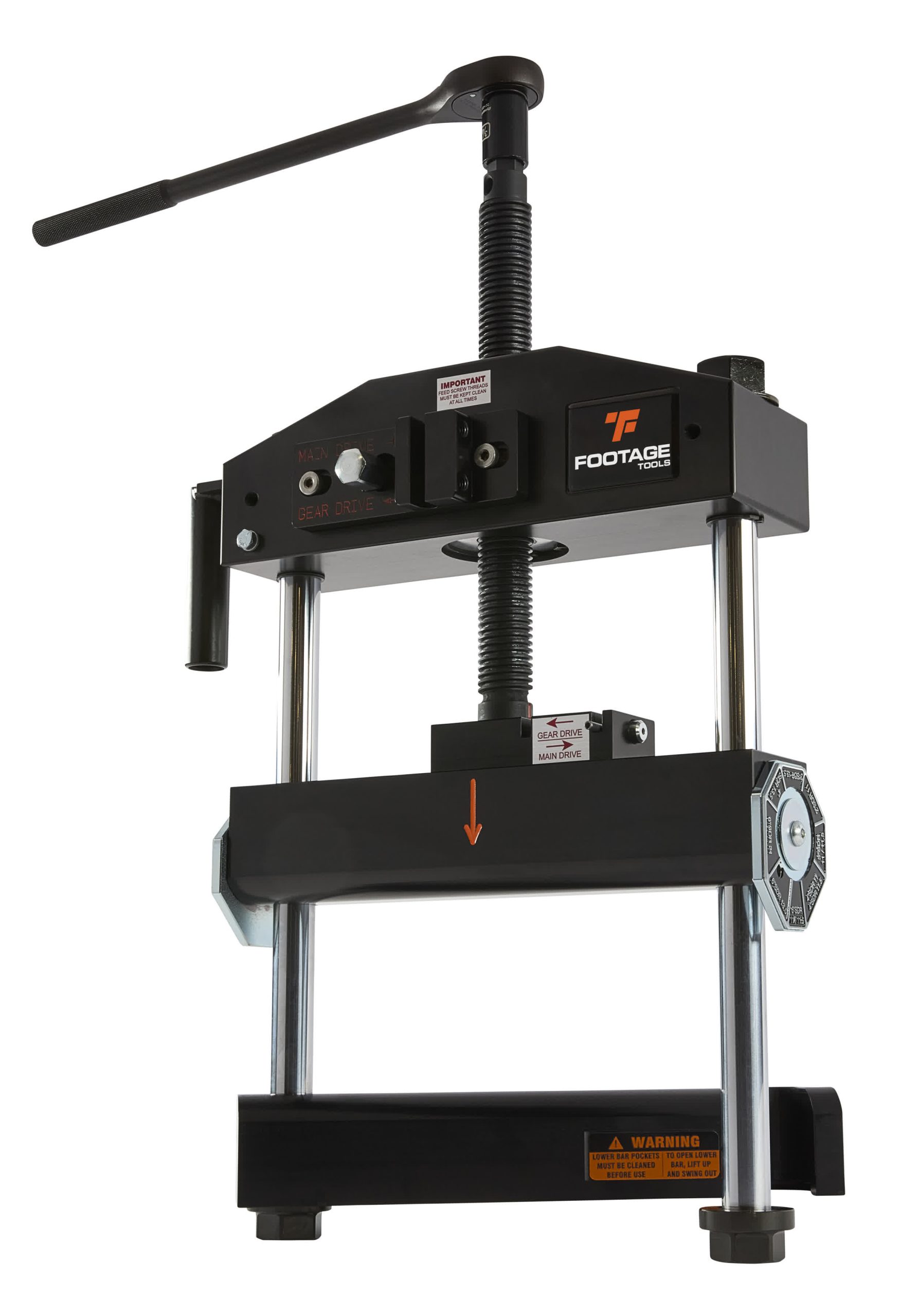

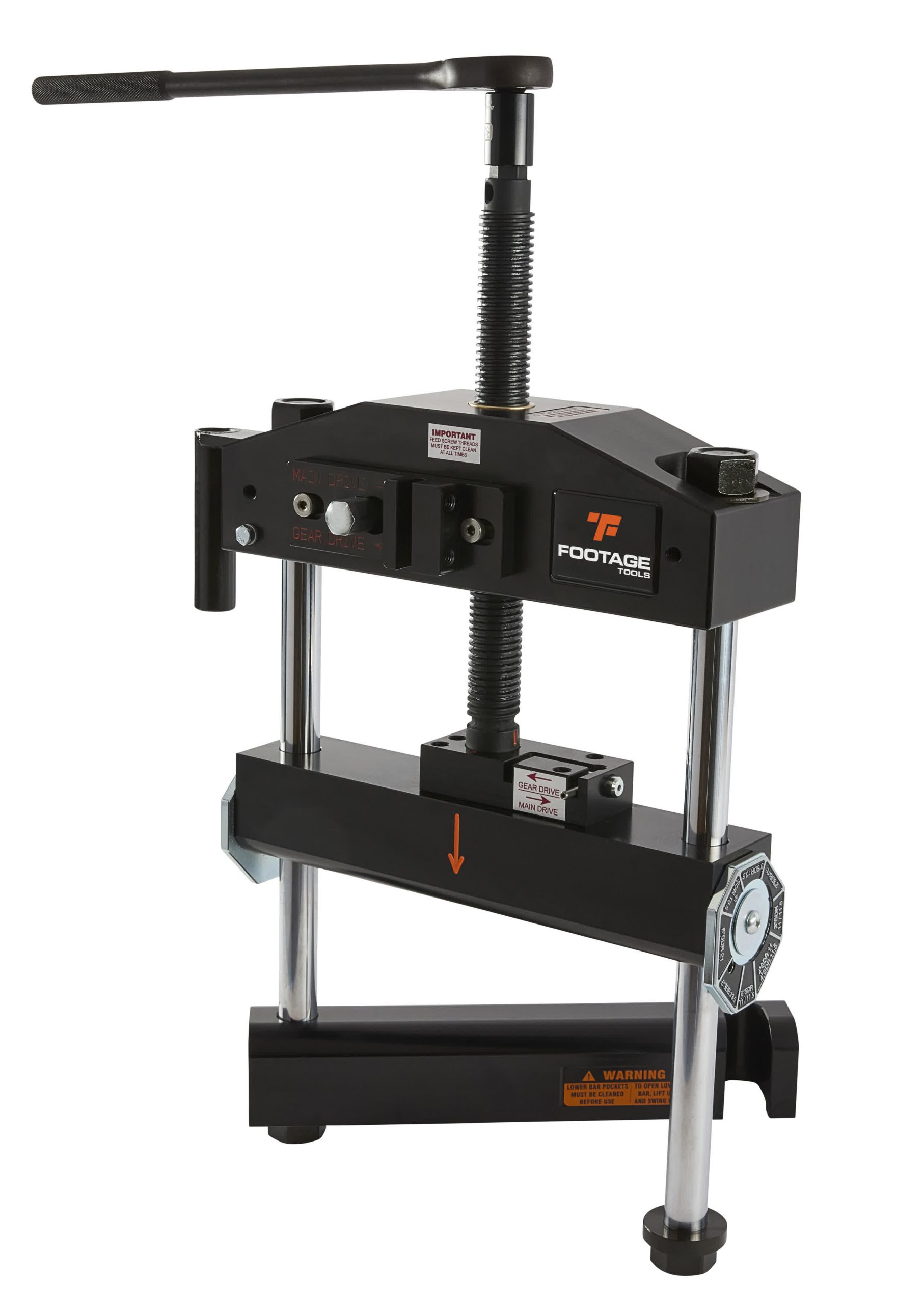

Footage Tools C400 Gear Squeeze-Off Tool

The Footage C400 Gear-Driven PE Pipe Squeeze Tool  is engineered for utility operations that require dependable pipe squeeze-off capability while avoiding the complexity and cost of hydraulic equipment. Using a gear-driven design, the tool delivers increased torque and controlled compression for larger polyethylene pipe applications commonly found in gas distribution and utility infrastructure systems.

Its worm gear mechanism allows operators to apply gradual, consistent force throughout the squeeze-off process, helping maintain pipe integrity and operational control. Built with aircraft-grade aluminum squeeze bars, chrome-plated steel side shafts, and a coated feed screw, the C400 is designed for long-term durability in demanding field environments. The swing-out bottom bar, stabilization bar, and included grounding spike further support safe and efficient field operation.

Request a Quote

Key Features

Worm Gear Drive System

A gear-driven squeeze mechanism delivers increased torque and controlled compression for larger PE pipe applications without the need for hydraulic power.

Accommodates 2" to 6" PE Pipe

Designed for polyethylene pipe ranging from 2 inches to 6 inches across multiple SDR ratings, providing versatility for utility and pipeline operations.

Six-Sided Indexable Gauge Plates

Positive-locking gauge plates provide consistent squeeze settings and help support safe, repeatable operation.

Aircraft-Grade Aluminum Squeeze Bars

Heavy-duty aluminum squeeze bars provide strength while helping reduce overall tool weight.

Chrome-Plated Steel Side Shafts

Corrosion-resistant steel side shafts are designed to withstand demanding utility and contractor environments.

Coated Feed Screw

A protective coating helps minimize corrosion and reduce operating friction for smoother performance and longer service life.

Ratchet-Driven Operation

The C400 operates using a standard right-angle ratchet connected to the integrated hex drive, eliminating the need for hydraulic pumps and hoses.

Swing-Out Locking Bottom Bar

Allows for faster pipe positioning and removal, especially when working in trenches, excavations, and restricted-access locations.

Stabilization Bar

Included stabilization bar improves balance and operational control throughout the squeeze-off process.

Heavy-Duty Grounding Spike

Supplied with a grounding spike to support safe squeeze-off procedures during field operations.

Benefits

Eliminate the Need for Hydraulic Equipment

The gear-driven design provides strong squeeze-off capability without requiring hydraulic pumps, hoses, or associated maintenance.

Reduce Equipment Investment

By utilizing a manual worm gear system, the C400 offers a cost-effective alternative to hydraulic squeeze tools while maintaining dependable performance.

Improve Jobsite Productivity

Quick setup, simplified operation, and efficient pipe access help crews complete maintenance and repair tasks more efficiently.

Maintain Greater Control During Squeeze-Off Operations

The worm gear mechanism allows gradual application of pressure, helping operators maintain precise control throughout the squeeze process.

Support Multiple Utility Applications

Compatibility with multiple PE pipe sizes and SDR ratings allows the tool to be used across a variety of gas utility, municipal, and contractor projects.

Built for Long-Term Field Use

Corrosion-resistant materials and heavy-duty construction help maximize durability in demanding outdoor environments.

Promote Safer Operations

The included grounding spike and positive-locking gauge system help support safe and consistent squeeze-off procedures.

FAQ

The C400 is designed for 2-inch to 6-inch polyethylene pipe and supports multiple SDR ratings.
No. The C400 uses a manual worm gear drive system, eliminating the need for hydraulic power equipment.
The tool is operated using a standard right-angle ratchet connected to the integrated hex drive.
The worm gear mechanism delivers enhanced torque and allows operators to apply pressure gradually, providing greater control during squeeze-off procedures.
Yes. The swing-out bottom bar design allows easier access and positioning in trenches and other restricted workspaces.
Yes. A heavy-duty grounding spike is included to help support safe field operations.
Yes. Custom gauge plates can be ordered for specific pipe applications and operational requirements.
